Blackhawk M2M Jellyfish Antenna – MIMO LTE / MIMO WiFi / GPS (3m cables)
Blackhawk M2M Jellyfish Antenna – MIMO LTE / MIMO WiFi / GPS (3m cables)
  • Blackhawk M2M Jellyfish Antenna – MIMO LTE / MIMO WiFi / GPS (3m cables)
Product Details ＋

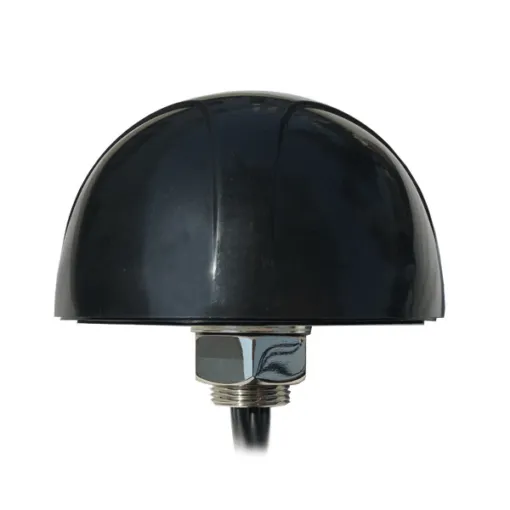

The Blackhawk M2M Jellyfish antenna can be mounted on the roof of a vehicle or a fixed structure.

  • Omni-directional heavy-duty IP67 waterproof external M2M antenna
  • For use in telematics transportation and remote monitoring applications
  • Two elements designed to cover the 698-960 & 1710-2700MHz cellular bands (2 x SMA male)
  • Two elements designed to cover the 2.4-2.5 and 4.9-5.85 GHz WLAN bands (2 x RP-SMA male)
  • One GPS(GLONASS) element (SMA male)
  • Has its own grounding plane and can radiate on any mounting environment without affecting performance.
  • 5-port antenna with 3-metre low-loss cable

ELECTRICAL SPECIFICATIONS

GPS(GLONASS) Part:
Connectors 1 x SMA male
Frequency Range 1575.42MHZ±3 MHz/1602-1610MHz
Polarization Type RHCP
Impedance 50Ω
LNA Gain 28±2dB Typical
Noise Figure 3-3.5dB
V.S.W.R ＜2.0
DC Voltage 2.2-5.0V
DC Current 5-15mA
WIFI Part:
Connectors 2 x RP-SMA male
Frequency Range 2400-2500MHz 4900-5850MHz
V.S.W.R ＜2.0
Gain 6/8dBi
Polarization Linear
Impedance 50Ω
LTE Part:
Connectors 2 x SMA male
Frequency Range 698-960MHz，1710-2170MHz 2300-2700MHz 2900-3800MHz
V.S.W.R 3 Max
Gain 3/5/6/7dBi
Polarization Vertical
Impedance 50Ω

MECHANICAL SPECIFICATIONS

Housing Black
Cable GPS: RG174                                  LTE&WIFI: RG58
Length 3m
Connector SMA(m)
Operation Temperature -40℃~ 85℃
Humidity 65%-95%RH
Waterproof IP67
Antenna Radome Material ABS
Mount way Screw
Antenna Dimension Ф143.5×80mm
Weight 1.2KG

Weight 1.2 kg
