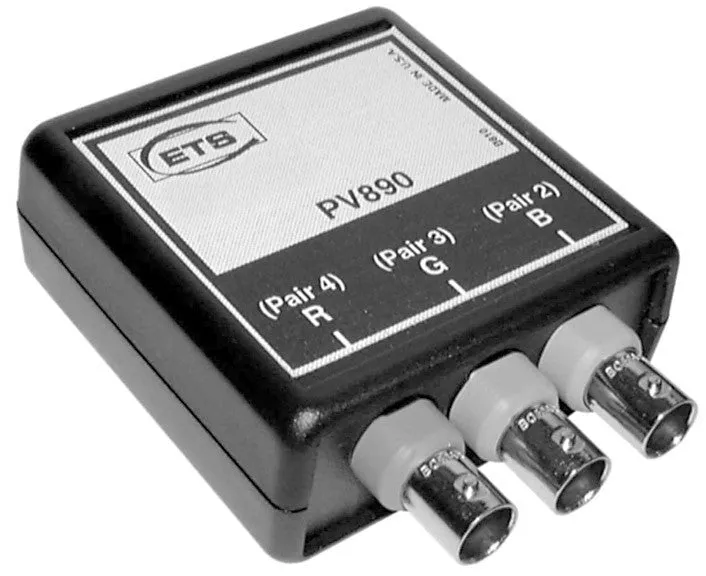

The ETS PV890 Series of RGB Video Baluns provides you with the ability to send RGB video over standard telecom wiring (UTP), of Category 3 or better quality. The PV890 supports RGB with SOG (sync on green), using 3 pairs of UTP. The PV891 allows RGB with separate sync to be run using 4 pairs. Both baluns support monitors with resolutions up to 1024 x 768 pixels, at refresh rates of up to 75 Hz. The RGB Baluns allow the user or installer to take advantage of pre-installed telecom wiring, or to realize the cost advantage of wiring with UTP instead of coax. PV890 baluns optionally ship with 3 color-coded coax jumper cables to connect to your source and receiving equipment, order part number ETS-RGBJ3 for each set.

Specifications

• Bandwidth Flat to 60 MHz, each channel
• Connectors 3 or 4 BNC female to RJ45
• Distance 100 meters (TIA 568) minimum
• Emissions Meets FCC Class A
• Common Mode 50 dB
• Rejection Media Category 3 or better Category 5 or better recommended
• Dimensions : 66mm x 66mm x 28mm Net Weight 0.02 kg (0.1 kg PV845)

• SOG and separate sync models available - call to inquire
• Send RGB over UTP at distances of up to 600 meters (150 meters nominal using CAT3 cable)
• Supports up to 1024 x 768 resolution at 75 Hz refresh
• Meets FCC Class A
• Superior signal balancing, lower crosstalk, less ingress and ghosting
• May utilize existing telecom wiring
• Sturdy compact plastic case
• Made in USA. 100% QA.

Applications

• Remote Display Applications
• Video Projection Systems
• Conference Rooms
• Schools
