| Product Attribute | Attribute Value |
|---|---|
| Function | AirFlow |
| Maximum Operating Temperature | 85 °C |
| Measurement Range | 0.001 CFM (0.03 L/Min.) |
| Minimum Operating Temperature | -20 °C |
| Output | Voltage |
| Pressure, Operating | 30 sccm |
| Response Time | 1 ms (Typ.) |
| Series | |
| Supply Voltage | 15 VDC |
| Technology | Thermal Conductive |
| Termination | Wired Connector |
| Voltage Rating | 10.0 VDC (Typ.) |
| Voltage, Input Offset | 1.00 VDC |
| Voltage, Switching | 3.4 VDC |
Overview

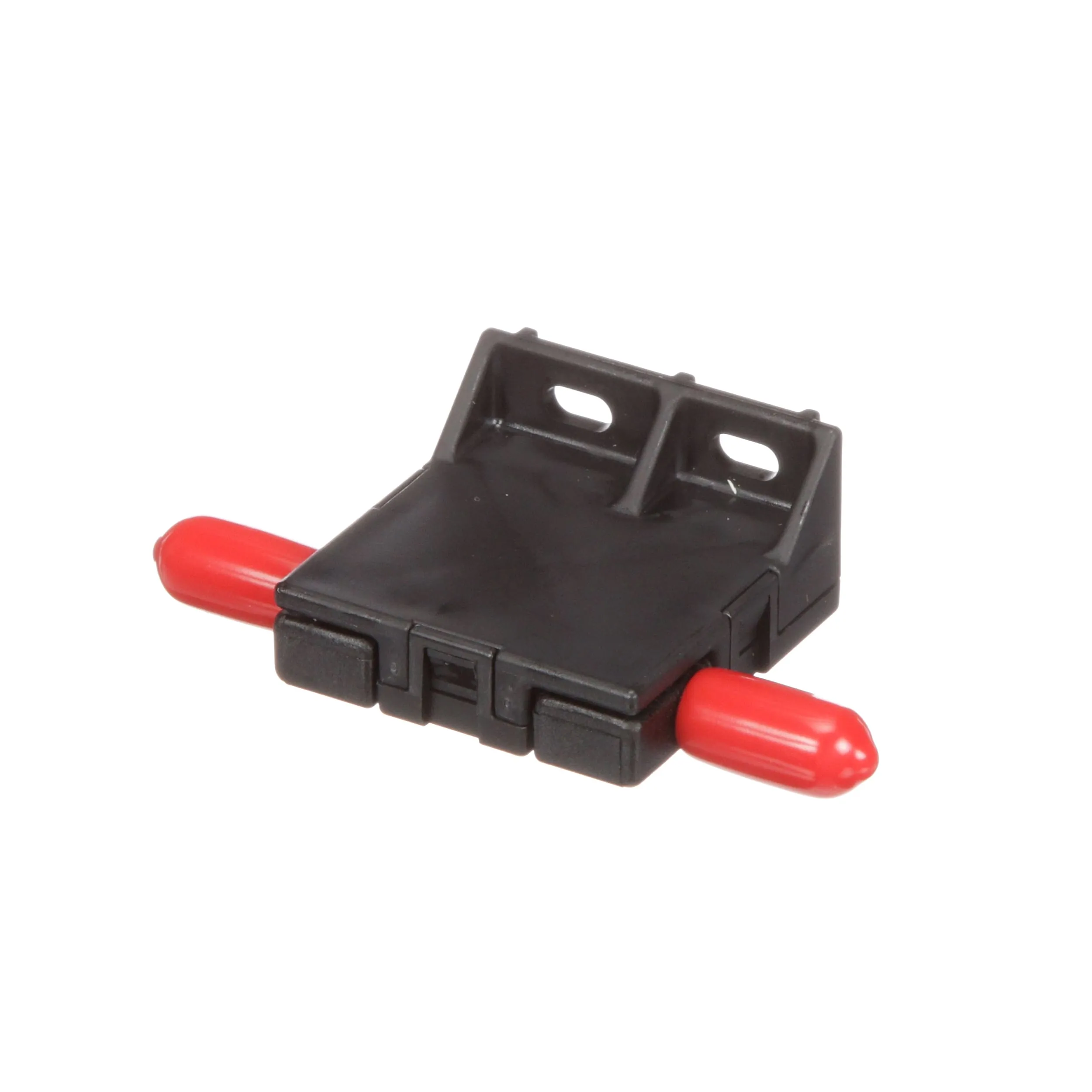

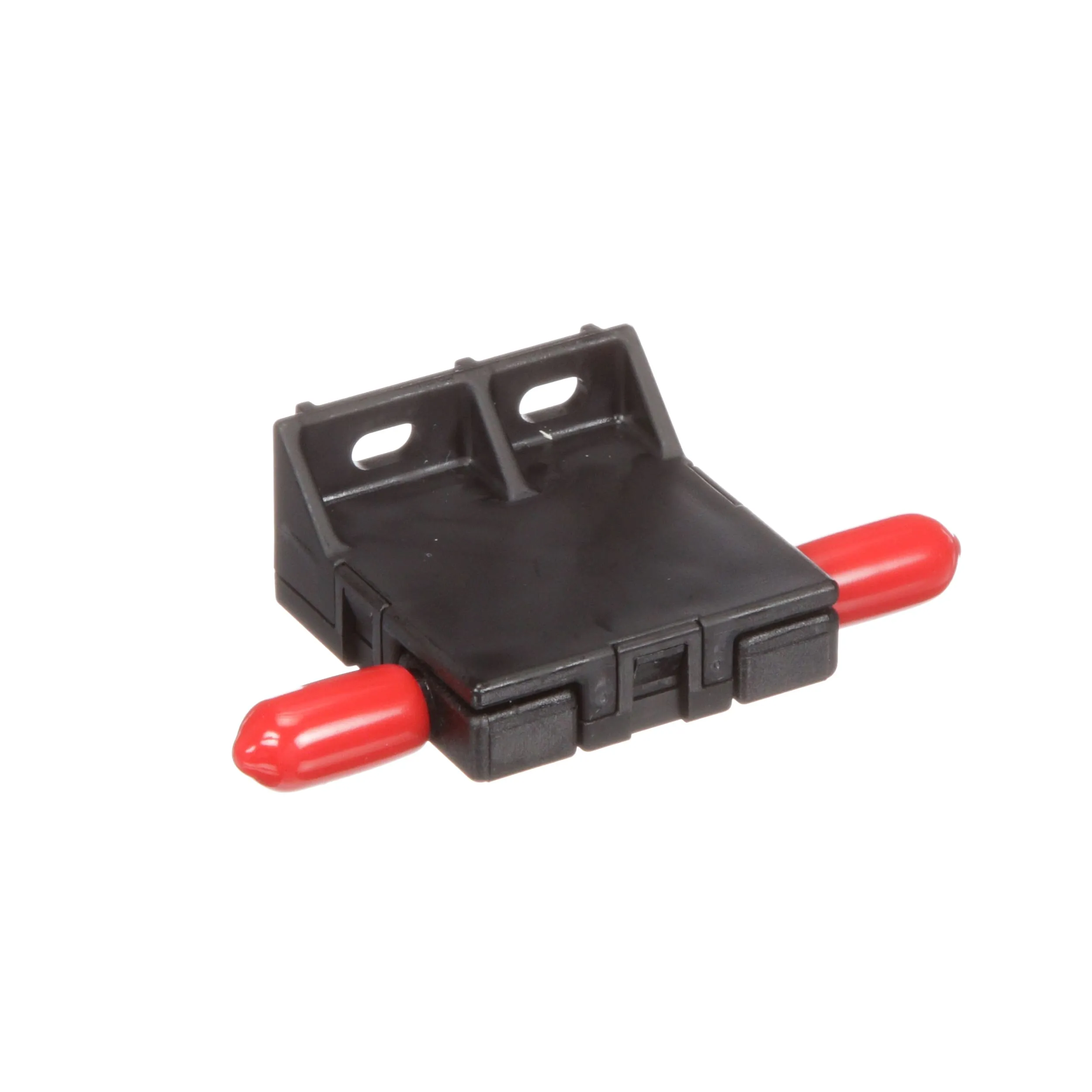

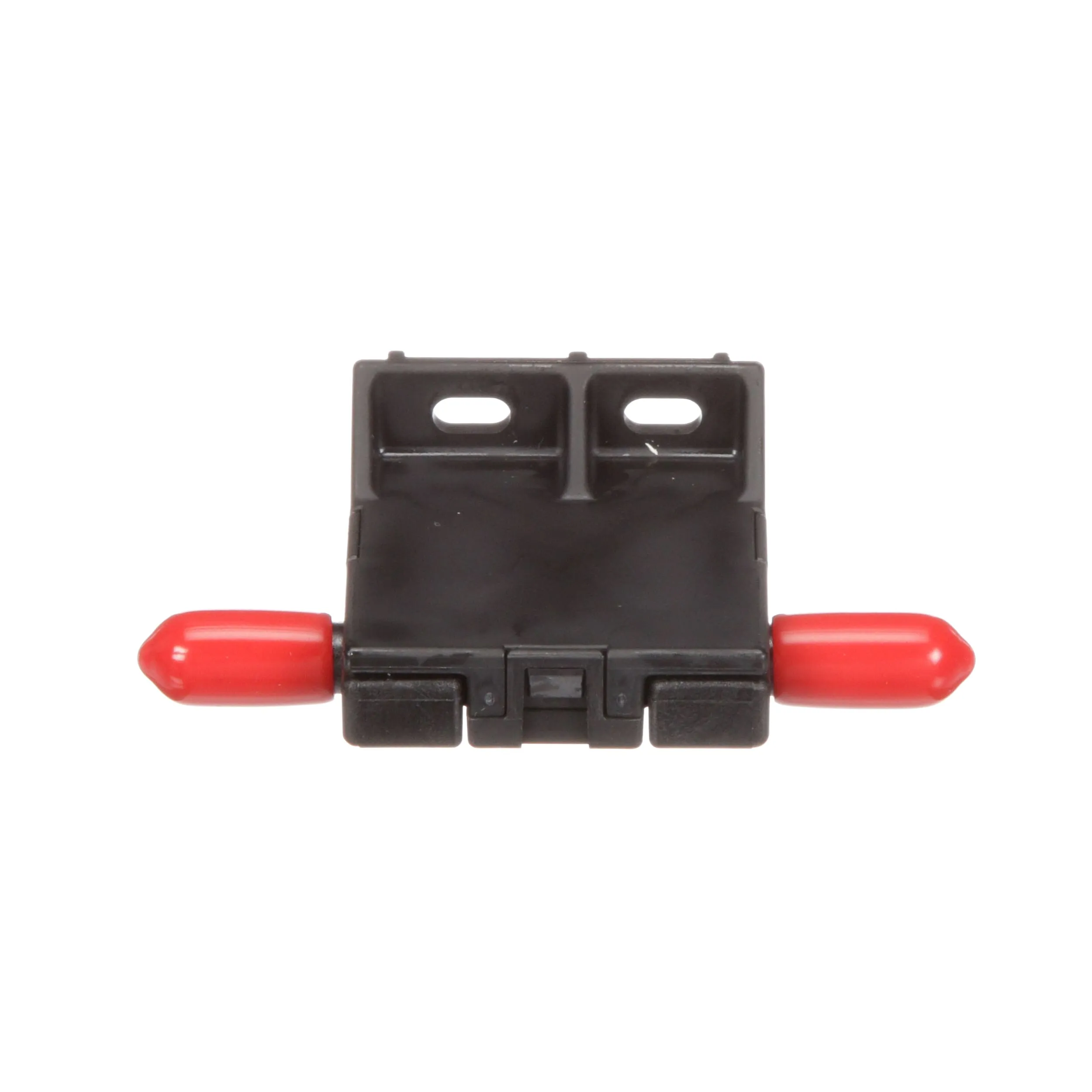

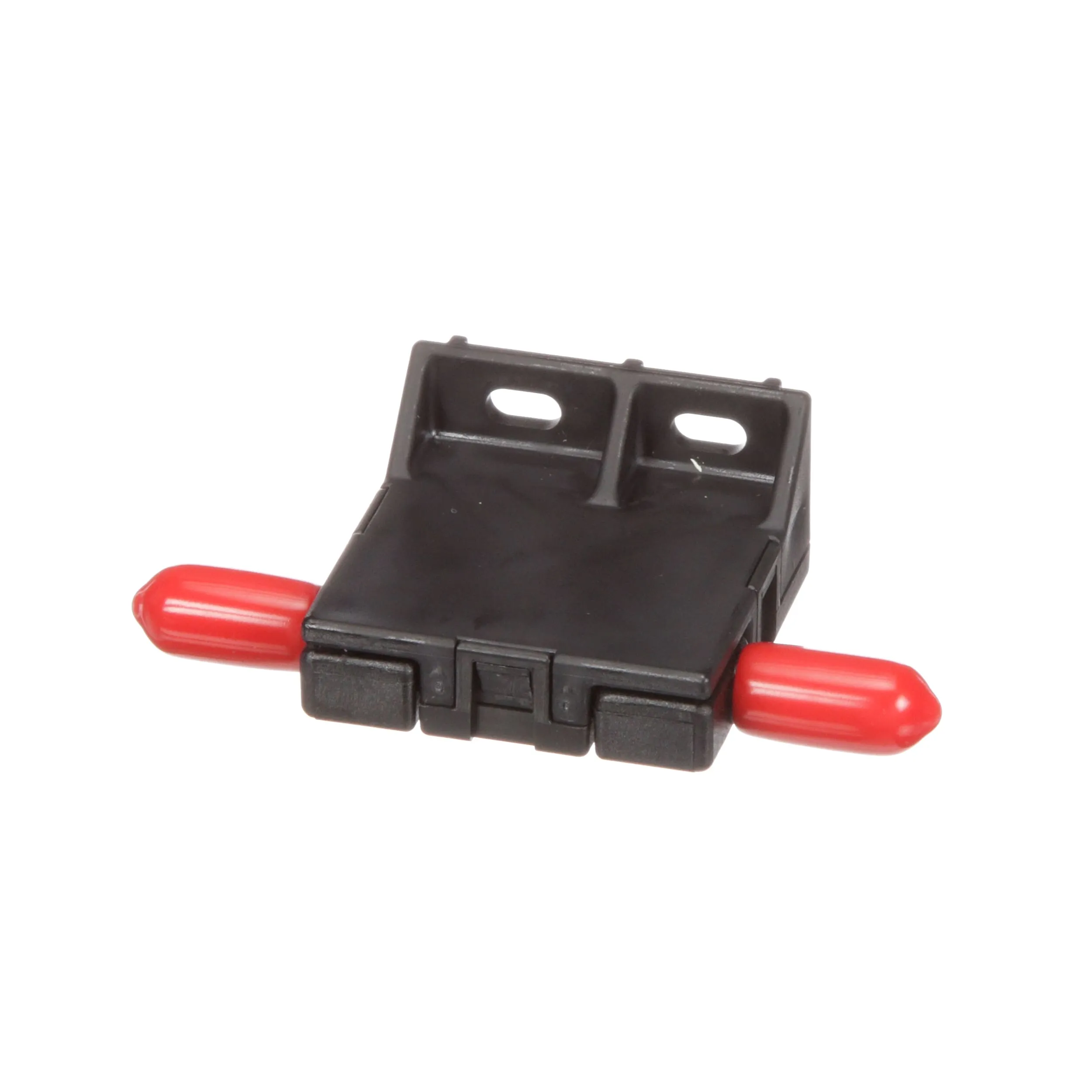

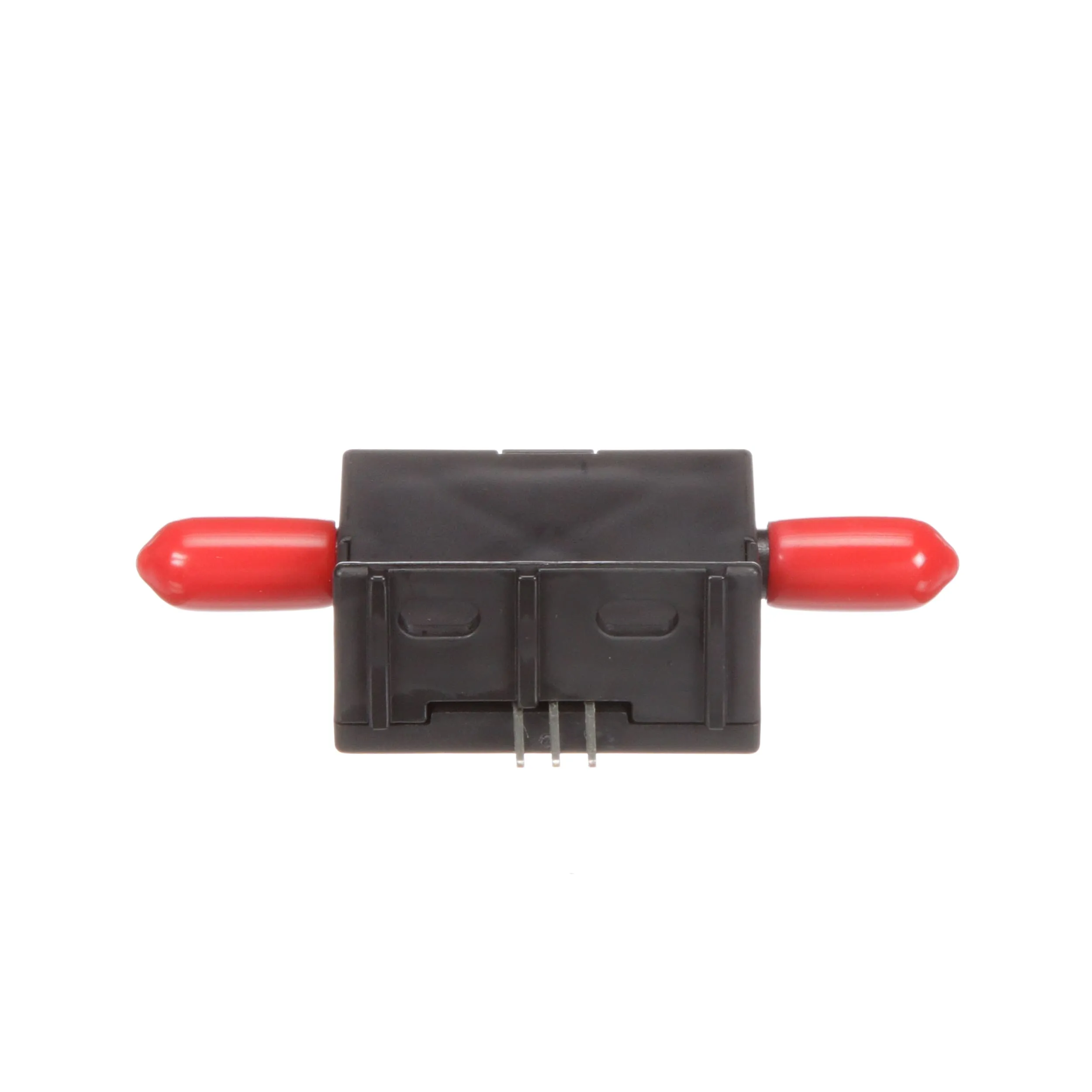

The AWM2000 Series microbridge mass airflow sensor is a passive device comprised of two Wheatstone bridges. The heater control circuit is required for operation per specifications. The sensing bridge supply circuit-in is also required for operation per specifications. These two circuits are not on board the package and must be supplied in the application. The differential amplifier is a useful interface for the sensing bridge. It can be used to introduce the gain and to introduce voltage offsets to the sensor output.
The AWM3000 Series is amplified; therefore, it can be used to increase the gain and to introduce voltage offsets to the sensor output. The AWM3000 Series is ideal for ultra-low flow applications. Also, the heater control circuit and the sensing bridge supply circuit are on board the AWM3000 package.
