Product Details
＋

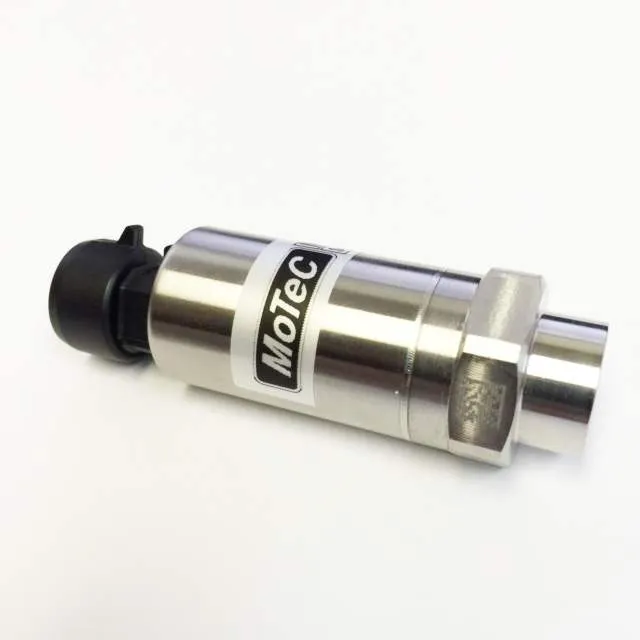

metri-pack electrical connection, and an all stainless steel design that is compatible with all fluids, the MoTeC professional series of pressure sensors have the repeatability and accuracy needed for the most demanding environments. Additionally, these pressure sensors have a dash-3 female threaded input for easy adoption to any fitting size through the use of an aluminum adapter (sold separately).
Multiple pressure ranges are available.
Multiple pressure ranges are available.
Specifications:
Fitting: Dash-3 female
Output: 0.5 to 4.5 VDC
Supply: 5 /- 0.5 VDC
Current: < 10mA
Output Impedance: < 100 Ohm
Temperature Range: -40°C to 125°C
Total Error: 0.8% of F.S. Pres
Proof Pressure: 2 x F.S. Pres
Burst Pressure: 5 x F.S. Pres
Main Seal: welded stainless
Weight: 70 grams
Fitting: Dash-3 female
Output: 0.5 to 4.5 VDC
Supply: 5 /- 0.5 VDC
Current: < 10mA
Output Impedance: < 100 Ohm
Temperature Range: -40°C to 125°C
Total Error: 0.8% of F.S. Pres
Proof Pressure: 2 x F.S. Pres
Burst Pressure: 5 x F.S. Pres
Main Seal: welded stainless
Weight: 70 grams
Note: Sensor should be mounted remotely to avoid engine vibration damage.
