Product Details
＋
The Muxlab 500465-RX HDMI-over-Coax Receiver allows an HDMI device to be connected to an HDMI receiver up to 250’ (76m) at 1080p resolution via one RG59 coax cable in a point-to-point configuration. The HDMI device may be cascaded via the 500465-RX Receiver in order to support multi-display applications.
Note: 500465-RX Receiver requires the 500465-TX Transmitter (sold separately) at the transmitting end.
Features
- Supports HDMI over one RG59 coax cable
- Up to 250’ (76m) at 1080p resolution, 500’ (152m) at 1080i/720p resolution
- Suitable for harsh electrical environments
- Cascadable on the transmitter and receiver side
Applications
- Digital signage
- Industrial and commercial AV systems
- Classroom projector systems
- Boardroom systems
- Medical information systems
- Retrofit

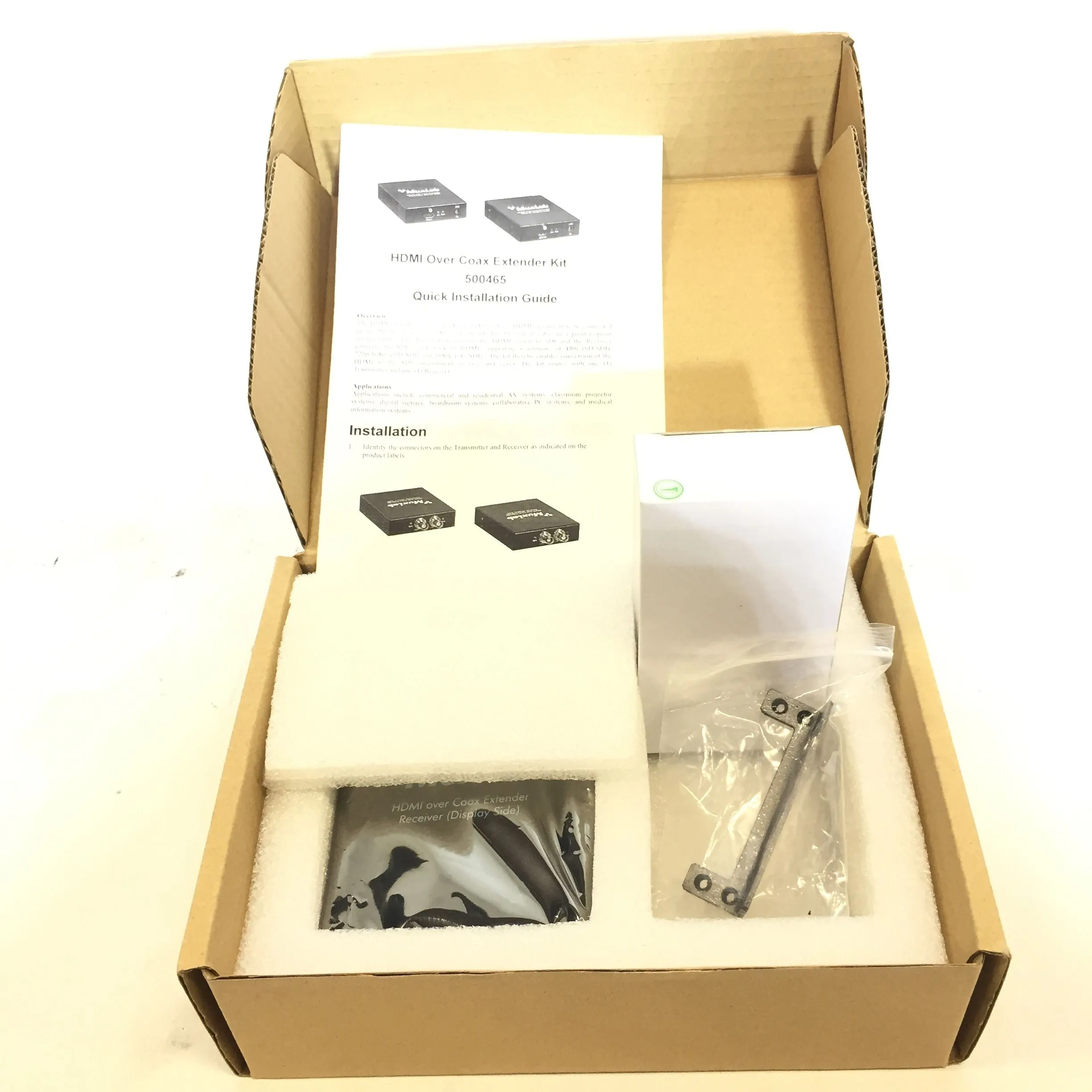

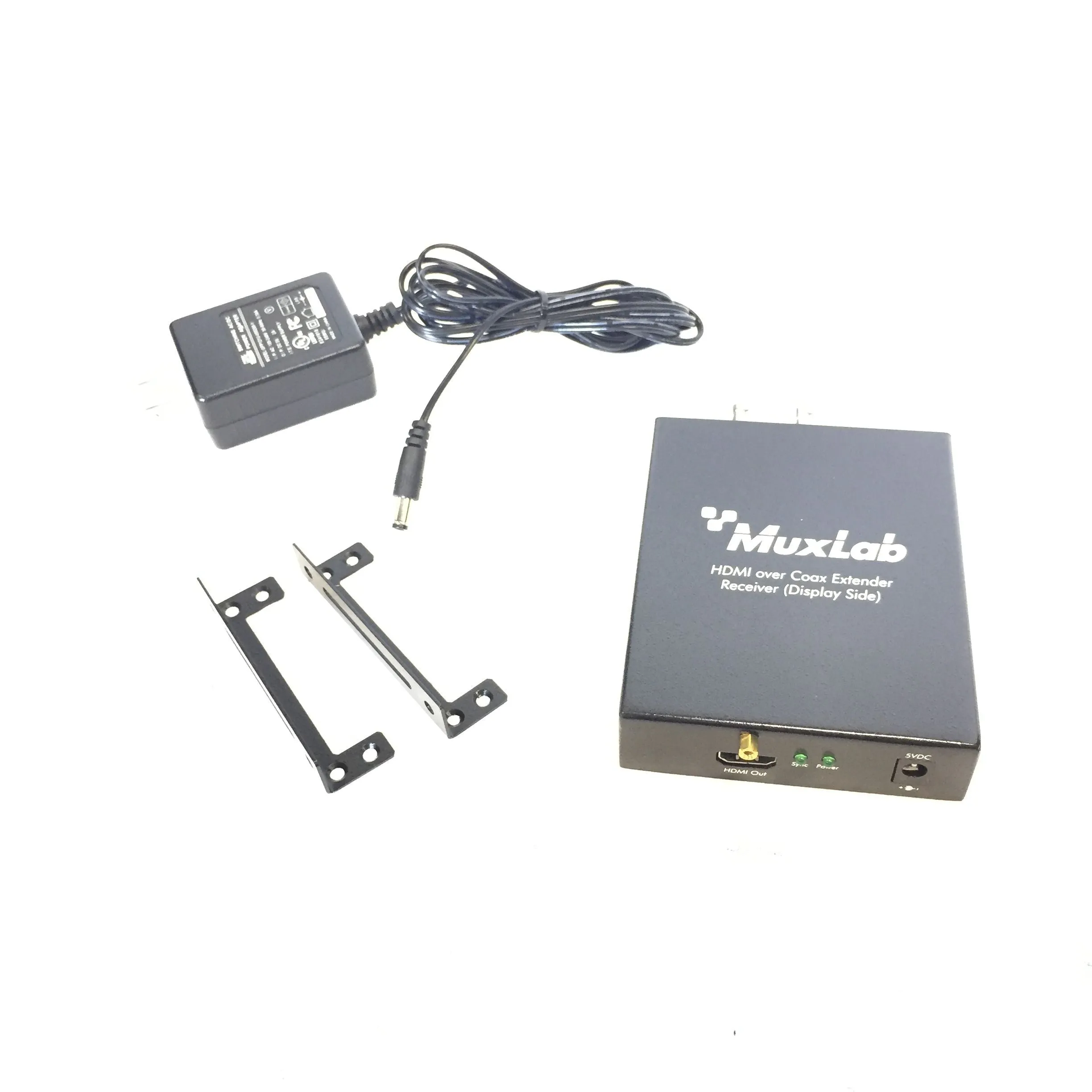

In the Box
- MuxLab 500465-RX HDMI-over-Coax Receiver
- 110 to 240V / 5VDC / 2A Power Supply
| Environment | HDMI 1.3a |
| Devices | DVD, plasma, projectors, monitors, TV, PC, laptops, and servers supporting HDMI |
| Transmission | Transparent to the user |
| Signal | HDMI 1.3a, line level stereo audio |

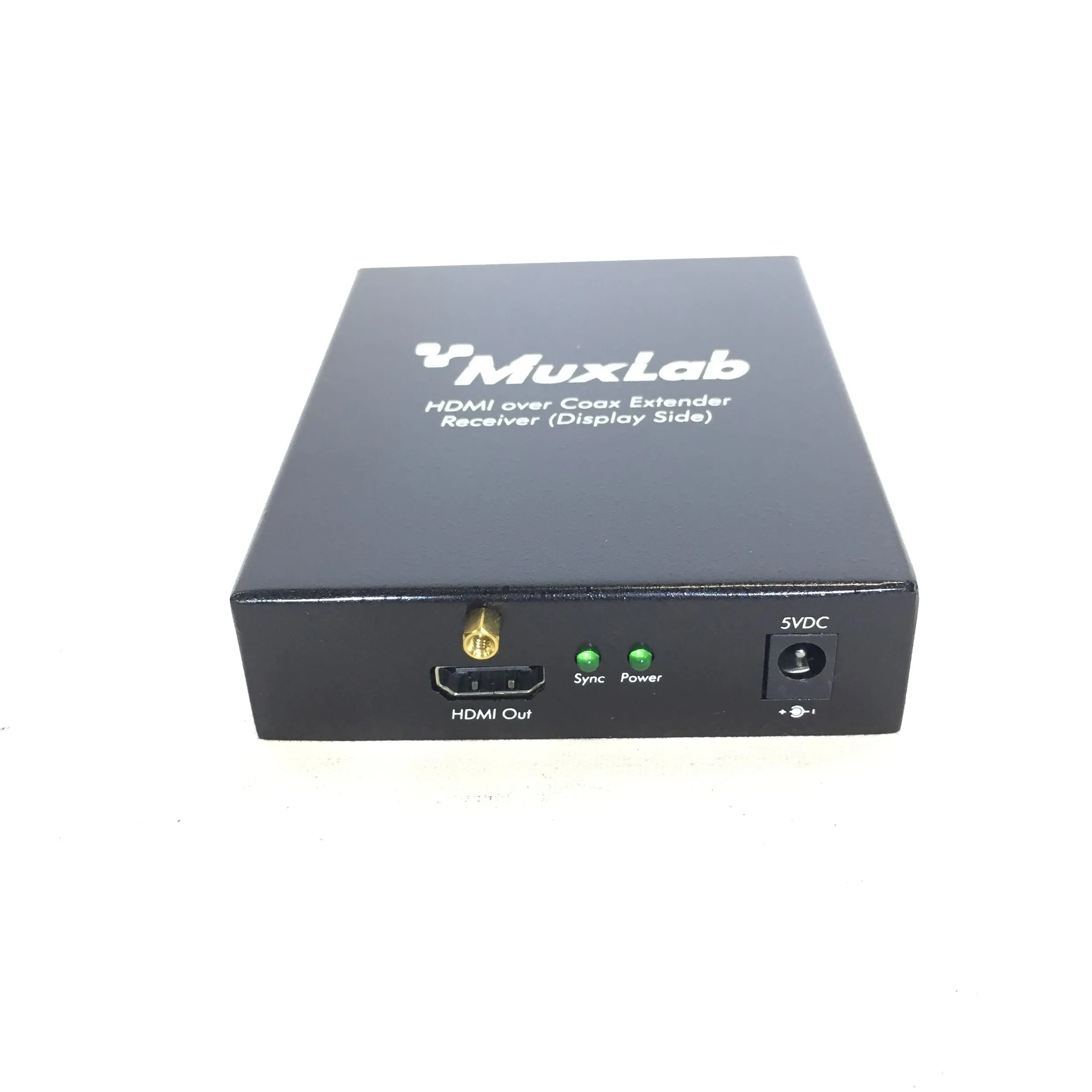

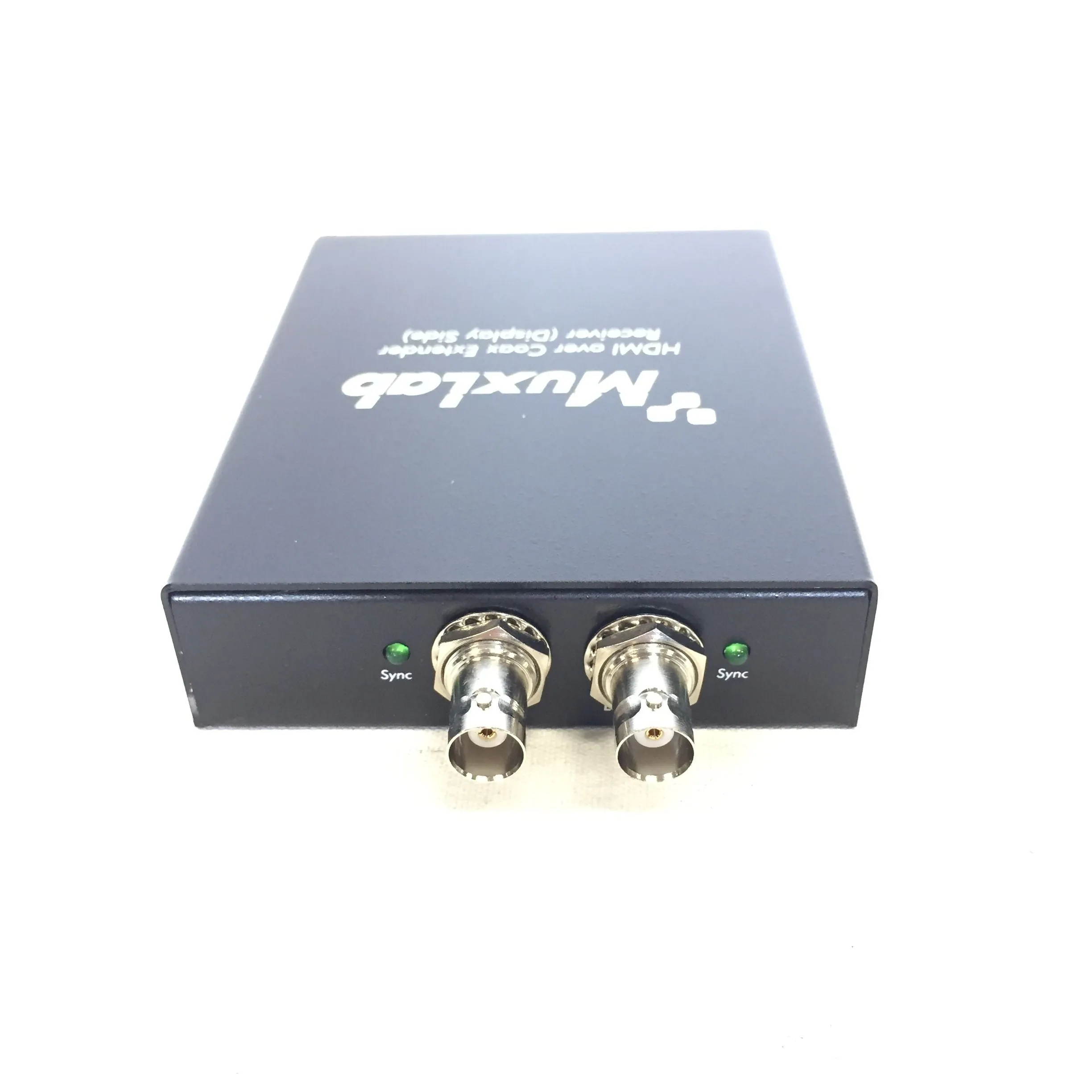

| Connectors | 1 x HDMI receptacle for output 1 x BNC-F for coax link input 1 x BNC-F for coax cascade output |
| Maximum Distance |
480i: RG-59: 650' (198 m) RG-6: 800' (244 m) 720p, 1080i: RG-59: 500' (152 m) RG-6: 650' (198 m) 1080p: RG-59: 250' (76 m) RG-6: 300' (91 m) |
| LED Diagnostics | Power (Red) HDMI Sync (Green) Coax Sync (Green) |
| Cable | 1 x RG59 or RG6 coax cable |
| Power Supply | 110 to 240 V / 5 VDC / 2A (included) |
| Power Consumption | 5.15 W |
| Operating Temperature | 32 to 131°F (0 to 55°C) |
| Storage Temperature | -4 to 185°F (-20 to 85°C) |
| Humidity | Up to 95% non-condensing |
| Material | Metal |
| Regulatory Compliance | FCC, CE, RoHS Flammability: 94V0 |
| Dimensions | 4.6 x 2.4 x 1.1" (11.8 x 6.2 x 2.8 cm) |
| Weight | 1.0 lb (0.4 kg) |
Packaging Info
| Package Weight | 1.3 lb |
| Box Dimensions (LxWxH) | 9.8 x 7.3 x 2.7" |
