Description
24" Freestanding Wine Cellar
Summit's SWC6G line features European designed glass door wine cellars approved for commercial use, with quality construction for long-term storage of wine.

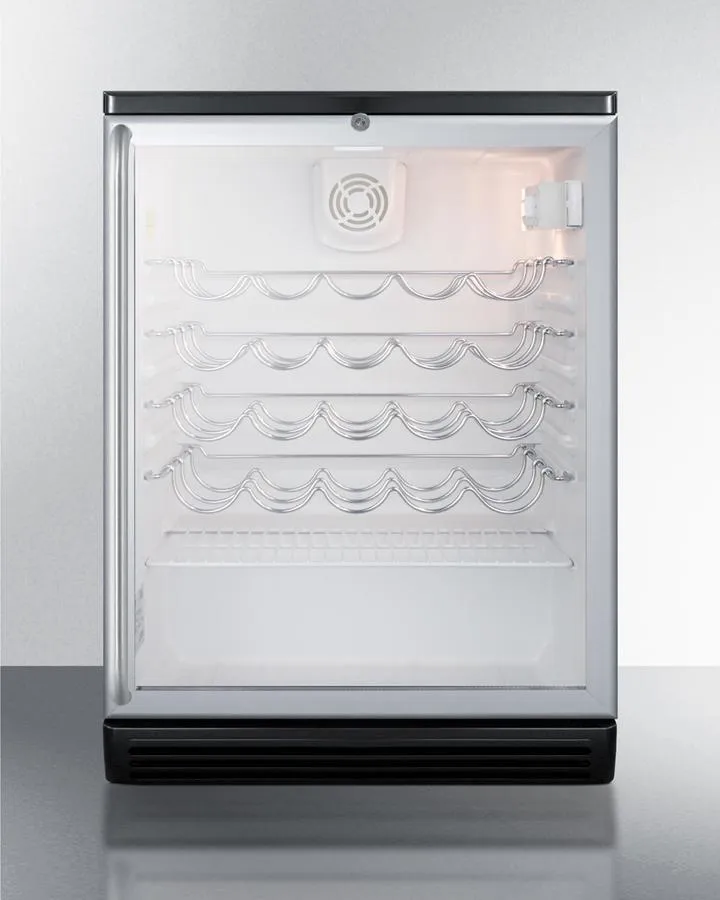

The counter-height SWC6GBL is just under 24" wide for an easy fit in tight settings with a finished black cabinet for freestanding use and an aluminum trimmed reversible glass door for a stylish display. A factory lock offers keyed security.
Inside, the SWC6GBL is fully featured for proper storage of white wine. Scalloped steel shelves hold bottles inside the roomy interior, with a rocker switch light for optional illumination. Automatic defrost keeps maintenance to a minimum while Summit's unique "hidden" evaporator makes clean-up a snap.
With reliable performance and clean style, the SWC6GBL is ideal for storing the finest wine collection in any commercial or residential setting.
About Summit
From innovative design to superior construction, Summit products embody quality from the inside out. Their models can be modified to meet specific customer needs, whether that means adding brass finishes to a beer dispenser for a dramatic look or installing digital controls on laboratory coolers for user flexibility. They offer a full range in style and size that includes their unique thin-line models, designed to fit in those commonly found but hard-to-fill narrow spaces. They have one of the industry's largest collection of ADA compliant appliances and proudly manufacture a dozen models of Energy Star listed products.
Features
24" Freestanding Wine Cellar
Installation and Use
- Commercially Approved: ETL-S listed to NSF-7 for use in food service establishments.
- Slim Undercounter Dimensions: Just under 24" wide to fit tight spaces.
- Fully Finished Black Cabinet: Allows the unit to be used freestanding.
Wine Cellar Features
- Scalloped Steel Shelving: In 5.5. cu. ft. of space, curved shelves designed for the ideal storage of 36 wine bottles.
- Hidden Evaporator: Summit's original "hidden" evaporator is concealed in the wall so it never touches your fingers or the bottles.
- Double Pane Tempered Glass Door: Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch.
- Factory Installed Lock: Keyed lock for secure interior.
- Reversible Door Swing: Keep your options flexible with a reversible door that is easy to switch when your arrangement changes.
- Interior Light with Rocker Switch: Illuminate your collection with an interior light controlled by a rocker on/off switch.
Additional Features
- Commercially approved: ETL-S listed to NSF-7 for use in foodservice establishments
- Slim counter height dimensions: Less than 24" wide to fit tight spaces
- Double pane tempered glass door: Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch
- Factory installed lock: Keyed lock for secure interior, conveniently located at the top of the door
- Fully finished black cabinet: Allows the unit to be used freestanding
- Full-length towel bar handle: Professional handle in brushed stainless steel
- Automatic defrost: Reduced maintenance with auto defrost system
- Internal fan: Fan-forced cooling helps to maintain a more evenly cooled interior
- Scalloped steel shelving: Curved shelves designed for the ideal storage of wine bottles
- Half-sized wire shelf: Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
- Interior light: Illuminate your collection with an interior light controlled by a rocker on/off switch
- Hidden evaporator: SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food
- Adjustable thermostat: Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering
- 100% CFC Free: Environmentally friendly design
- Temperature range: 5ºC to 10ºC/41ºF to 50ºF; To reach warmer temperatures, order with our red wine digital thermostat option (10ºC to 18ºC/50ºF to 64ºF range)
Specification
| Overview | |
| Height of Cabinet | 33.5" (85 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Bottles | 36 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 115.0 lbs. (52 kg) |
| Shipping Weight | 120.0 lbs. (54 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Wine Cellar | |
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Shelf Type | Scalloped |
| Shelf Qty | 4 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 20.75" (53 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 20.75" (53 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Condensor Location | Rear of Unit |
Product Information
- Brand: Summit
- Model: SWC6GBLSH
Appearance
- Type: Freestanding
- Size: Compact
- Undercounter: Yes
- Door Color: Stainless Look
- Cabinet Color: Black
- Hinge Side: Right
- Field Reversible Doors: No
- Glass Door: Yes
- Accepts Custom Panels: No
- Compact (Category): Yes
Key Features
- Temperature Zones: Single
- Temperature Control Type: Knobs
- Shelves: 4
- Defrost: Automatic
- Lock: Yes
- Sabbath Mode: No
- Technical Details
- Energy Star Rated: No
- ADA Compliant: No
- Star-K Certified: No
- Approved For Commercial Use: Yes
- Approved for Outdoor Use: No
- Drain Required: No
- Amps: 15
- Voltage: 115 Volts
